.:: Pfsense : How To Setup Vlans ::.

Requirements:

• 1 unit of Soekris or pc install with Pfsense

Setting Vlans On Pfsense

Now we setup the vlans on the pfsense

1. Login to Pfsense
2. Go to Interfaces(assign)
3. Click on the Vlans Tab
4. Click the little + sign to create a new vlan

Now we have some settings like this :

Parent Interface: sis0 (or whatever your LAN)
VLAN Tag: 10
Description: VLAN10

Parent Interface: sis0 (or whatever your LAN)
VLAN Tag: 20
Description: VLAN20

Parent Interface: sis0 (or whatever your LAN)
VLAN Tag: 30
Description: VLAN30

Assign Vlans Interface At Pfsense

Now return to pfsense, and reboot it. Everything should work, we’re just enabling the vlans.

Now login to the pfsense again, go to interfaces(assign), go to interfaces tab, then click the + sign.

You should have:

LAN: sis0
WAN: sis1
OPT1: VLAN 10 on SIS0 (VLAN10)
OPT2: VLAN 20 on SIS0 (VLAN20)
OPT3: VLAN 30 on SIS0 (VLAN30)

Click save. Reboot the pfsense again.

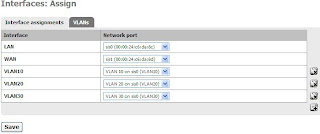

Figure1 : Assign Vlan Interface at Pfsense

Now login to the pfsense again, and change the interface name from OPT1 to VLAN10, and then assign it the ip range 10.0.10.1/24 and click save. Do the same for VLAN20 (10.0.20.1/24) and VLAN30 (10.0.30.1/24)

Now go to the DHCP Server section on the pfsense, and you’ll see a new VLAN10, VLAN20 and VLAN30 at the top, which you can configure.

Make sure it is enabled, then click “Apply Changes”

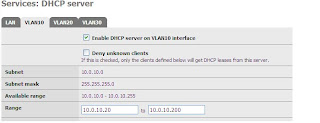

Figure2 : DHCP Server For Vlan10

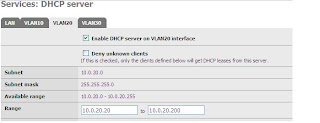

Figure3 : DHCP Server For Vlan20

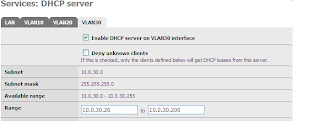

Figure4 : DHCP Server For Vlan30

Setting Up Vlan Routing at Pfsense

After you have done that you will want to configure your firewall rules on the pfsense setup. In this example, Vlan10 can access to Vlan20 and Vlan30. Same as Vlan20, it can access Vlan10 and Vlan30. But for Vlan30, it just can access Vlan20 only.


Figure5 : Vlan10 Rules

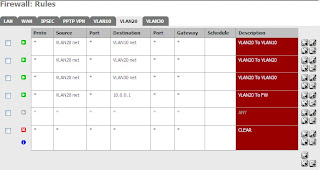

Figure6 : Vlan20 Rules

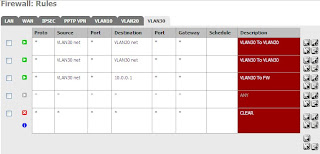

Figure7 : Vlan30 Rules

And now, i'm finish with setup Vlans on Pfsense. U can try it by yourself.
